OpenPark IOT platform supporting standard protocols such as MQTT for field equipment and OPC for server to server integration. It can scale up on demand based on elastic infrastructure to support any number of end points. End points can be gate terminals, LPR cameras, Smart pole, Smart Street parking terminal and more.
(Subscription per end point per year)

Parking LED display with network interface, dot pitch 10 mm and viewing area 320 mm x 160 mm connects directly to the cloud app with local control lines to open barrier gates up to 2 barriers. It can display the available spaces in the parking lot if used with a dual loop detector for the entry and exit lanes. Please follow the reference architecture.

OpenPark Industrial Gate Controller with Intel CPU, 128GB SSD, with GPU for License Plate Recognition algorithm to host the OP-CTL / OP-LPR / OP-ACM

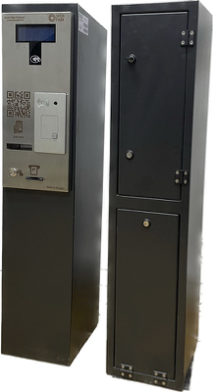

OpenPark entry terminal including RFID reader checker and thermal ticket printer QR code reader, LCD display with the following interfaces for connecting gate peripherals:
- 2 x RS-232/RS-485 serial interface
- 10/100/1000 Mbps Ethernet interface
- Digital inputs: 8
- Relay outputs: 4

Detection Range : 90cm
Reaction time:6~7 sec
Size: Ø173mm x H35 mm (Surface mount)
Battery life: 3 years around (7 Ah)
Protection Level: IP68
Application : Indoor & outdoor
Operation temperature: -40C°~85C°

OpenPark smart terminal including RFID reader checker, QR code reader, LCD display with the following interfaces for connecting gate peripherals:
- 2 x RS-232/RS-485 serial interface
- 10/100/1000 Mbps Ethernet interface
- Digital inputs: 8
- Relay outputs: 4

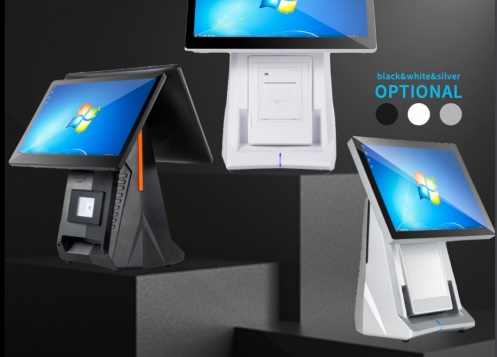

All in one POS machine with:
- 15" resistive touch, water poof
- 2D barcode scanner
- LCD POLE DISPLAY 2*20 CHAR., USB INTERFACE
- Cash drawer
- Receipt printer
- Desktop RFID card reader

Stainless steel floor standing Pedestal for OpenPark Access Controller or ANPR camera

Dual channel inductive loop detector

Access control reader/controller embedded in access gates with the following interfaces for connecting gate/door peripherals:
- 1 x RS-232/RS-485 serial interface
- 10/100/1000 Mbps Ethernet interface
- Integrated RFID reader (Mifare)
- Sensor inputs: 4 (gate status, fire alarm, trip alarm)
- Relay gate controls: 2 (for bi-directional control)
mounting inside turnstile with small footprint
Optional LCD display (to order separately)

OpenPark smart terminal including RFID reader checker, QR code reader, LCD display, Integrated audio/Video SIP based intercom with the following interfaces for connecting gate peripherals:
- 2 x RS-232/RS-485 serial interface
- 10/100/1000 Mbps Ethernet interface
- Digital inputs: 8
- Relay outputs: 4

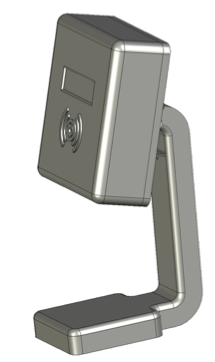

Access control reader/controller with LCD display with the following interfaces for connecting gate/door peripherals:
- 1 x RS-232/RS-485 serial interface
- 10/100/1000 Mbps Ethernet interface
- Integrated RFID reader (Mifare)
- QR code scanner
- Digital inputs: 4
- Relay outputs: 2
Optional mounting kit for turnstile, wall and floor standing

terminal with integrated Credit card contact and contact less card reader, receipt printer, and ticket reader. Cash-collector / recycler is included for one currency to be specified at order time

OpenPark entry terminal including RFID reader checker and thermal ticket printer QR code reader, LCD display, Integrated audio/Video SIP based intercom with the following interfaces for connecting gate peripherals:
- 2 x RS-232/RS-485 serial interface
- 10/100/1000 Mbps Ethernet interface
- Digital inputs: 8
- Relay outputs: 4
